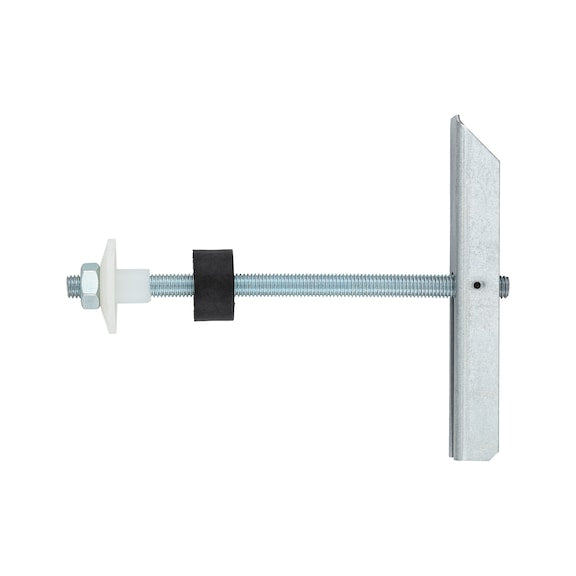

Toggle anchor W-KDW with centring plug

Anchor diameter: 10 mm

Type description: W-KDW

Anchor length (l): 180 mm

Hole diameter in component (d Bau): 14 mm

Design: Rubber spacer, collar and hexagon nut

Nominal drill-bit diameter (d 0): 30 mm

Thread diameter (d thr): 10 mm

Max. attachment height (d a): 140 mm

Material: Steel

Minimum cavity depth (h): 145 mm

Surface: Zinc plated
